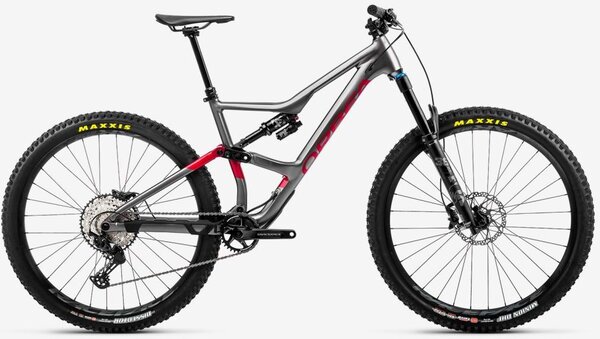

Orbea Occam H20 LT

Orbea Occam H20 LT
  • Color: Glitter Anthracite/Metallic Red (Gloss)
  • Color: Leo Orange/Black (Gloss)
  • Color: Metallic Dark Green/Lime Green (Matt)
$3,974.25 - $5,299.00
$5,299.00 - $5,299.99
Color:
Size: Select size
Please select options Unavailable

Details

Do your friends ask if you intend to ride the chairlift when you invite them out for a 'few' park laps? Do your top routes frequently involve pushing up and down trails that aren't on any map? Do your favorite rides begin or end with headlamps, an ice chest and great friends? Does your bike have to do everything well to get you there and back again? If you think you might be this rider, then Occam should be your bike.

Geometry

Sizes:
SIZESMLXL
1 - SEAT TUBE (C-T) 381 419 457 508
2 - TOP TUBE (EFF) 565 592 619 649
3 - HEAD TUBE 95 105 120 140
4 - CHAINSTAY 440 440 440 440
5 - BB HEIGHT 336 336 336 336
6 - BB DROP 32 32 32 32
7 - WHEELBASE 1165 1194 1224 1259
8 - HEAD ANGLE 65.5° 65.5° 65.5° 65.5°
9 - SEAT ANGLE 76.5° 76.5° 76.5° 76.5°
10 - STANDOVER 710 736 766 776
11 - REACH 425 450 474 500
12 - STACK 604 613 627 646
13 - FORK LENGTH 547 547 547 547
RAKE 44 44 44 44
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
150-165 59.1"-65.0" SMALL
160-175 63.0"-68.9" MEDIUM
170-185 66.9"-72.8" LARGE
180-198 70.9"-78.0" X-LARGE

Sizes:
SIZECRANKSTEMHANDLEBARDROPPER
SEATPOST
SMALL 170 45 780 390/125
MEDIUM 170 45 780 440/150
LARGE 175 55 780 440/150
X-LARGE 175 55 780 480/170

Specs

Frame Orbea Occam Hydro High Polished Triple Butted. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool
Fork Fox 36 Float Performance 150 Grip 3-Position QR15x110
Rear Shock Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm
Wheels Race Face AR 30c Tubeless Ready
Tires Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
Crankset Race Face Aeffect 32T
Shifters Shimano SLX M7100 I-Spec EV
Rear Derailleur Shimano SLX M7100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100
Brakes Shimano M6100 Hydraulic Disc
Handlebars OC Mountain Control MC30, Rise20, Width 800
Stem Alloy 3D forged, 35mm interface, -7º
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost OC Mountain Control MC20, 31.6mm, Dropper
Seatpost Lever: Shimano SL-MT500 I-Spec EV
Saddle Fizik Taiga S-alloy rail
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Glitter Anthracite/Metallic Red (Gloss) / Small 08434446182457 N25615LM OCC17118992E
Glitter Anthracite/Metallic Red (Gloss) / Medium 08434446182488 N25617LM
Glitter Anthracite/Metallic Red (Gloss) / Large 08434446182594 N25618LM OCC17164695E
Glitter Anthracite/Metallic Red (Gloss) / X-Large 08434446182624 N25620LM
Leo Orange/Black (Gloss) / Small 08434446182464 N25615LN OCC17526929K
Leo Orange/Black (Gloss) / X-Large 08434446182631 N25620LN
Metallic Dark Green/Lime Green (Matt) / Small 08434446182471 N25615LO
Metallic Dark Green/Lime Green (Matt) / Large 08434446182617 N25618LO
Metallic Dark Green/Lime Green (Matt) / X-Large 08434446182648 N25620LO
