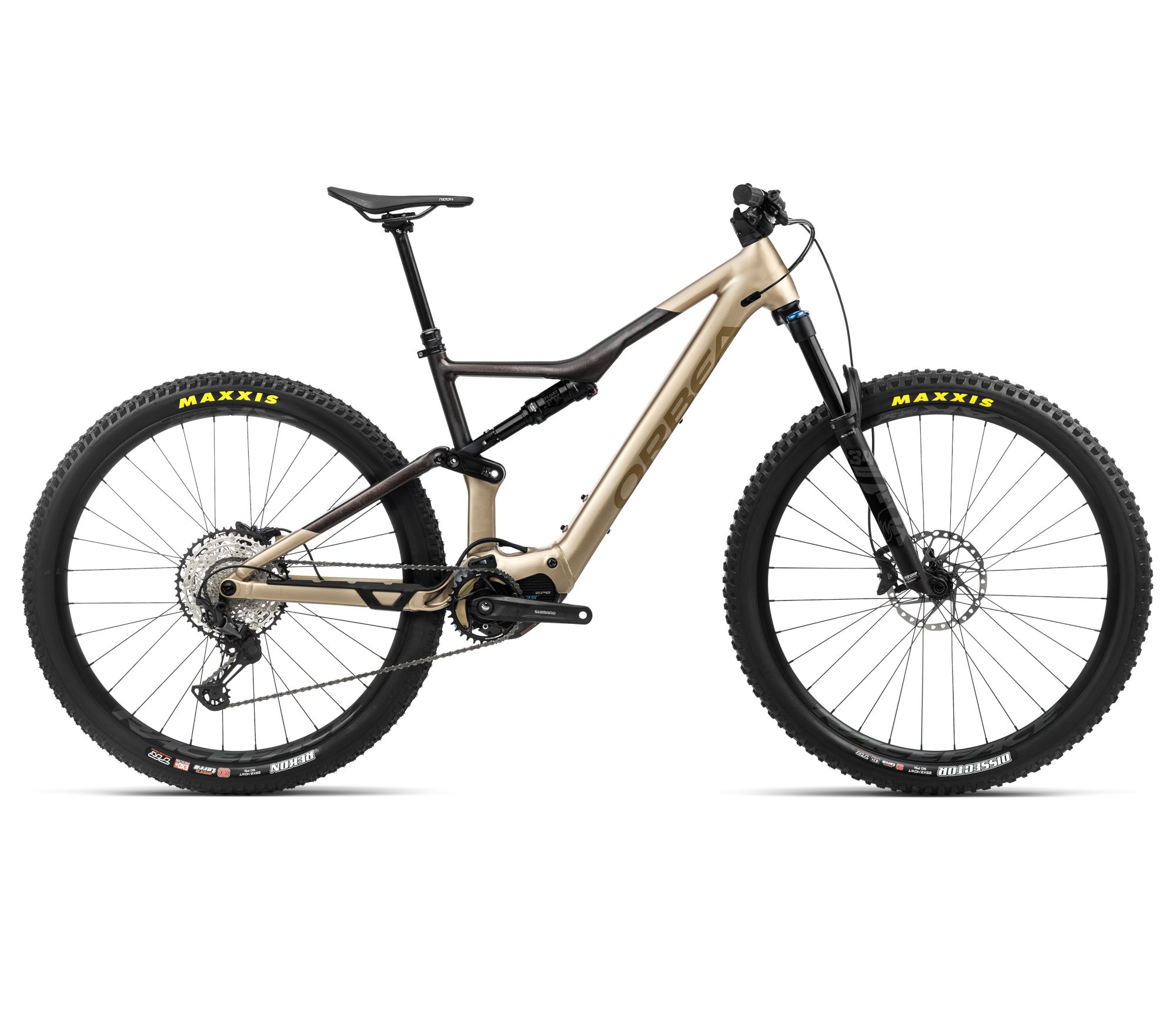

Orbea Rise H20

Orbea Rise H20
  • Color: Baobab Brown-Cosmic Brown
  • Color: Iceberg Grey-Moondust Blue
  • Color: Metallic Mulberry-Black
$8,599.00
Color:
Baobab Brown-Cosmic Brown
Size:
Small
Wheel Size:
29-inch
Please select options Unavailable

Details

RISE BEYOND

A NEW STANDARD IN LIGHTWEIGHT EBIKES

Rise shook up the lightweight e-MTB world on its launch with its "more bike, less E" philosophy. Simply the most natural feeling ebike on the market, bringing riders closer to the trail and shattering expectations about how an ebike should ride.

SUPERCHARGE YOU
Rider Synergy means that when you pedal harder, RISE responds instantly, multiplying your efforts and shooting you forward just as if you were fitter than ever. The instantaneous, lag-free, power and the way that it is delivered, means that it feels totally natural to be this strong and you just concentrate on the fun of riding.

IT IS ALL ABOUT THE RIDE
Obsessively removing weight means Rise is one of the lightest ebikes in this sector. Rise rewrites the rulebook on ebike handling, floating, popping, manualling, and slicing through the corners as it disappears into the distance.

The reactive, exciting handling owes much to the lack of inertia, but frame rigidity is vital too. Our SBS system helps give a lighter, stiffer frame, meaning we can tune the rigidity much as we do for our non-electric bikes.

MORE RIDING, LESS WEIGHT
More range from smaller, lighter batteries is precisely what our 1.5X factor is all about. Lighter weight, more efficiency, and greater reliance on your legs mean Rise delivers approximately 50% more riding than a traditional ebike.

CLOSER TO THE TRAIL
Simple solutions remove unnecessary complexity, add reliability, improving aesthetics and removing weight. You won't find rattling battery covers, or a spaghetti of cables on Rise, instead, our Clean Cockpit, SIC Cables, and SBS battery remove distractions, bringing you closer to the ride.

RISE CARBON AND ALLOY
Rise is available in OMR Carbon, or in our High Polish Alloy. No matter which Rise frame you choose, you can be sure that you are choosing one of the lightest, most playful ebikes out there.

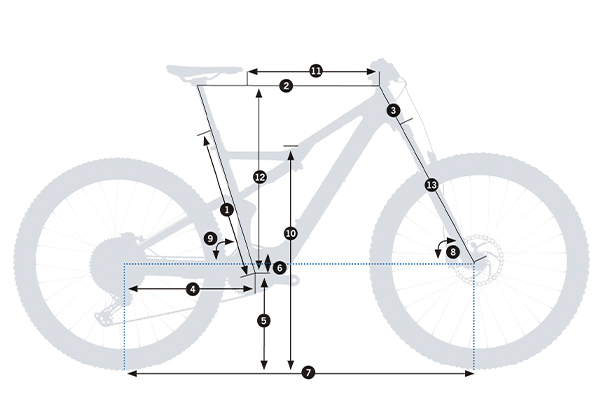

Geometry
Sizes:
SMLXL
1 - SEAT TUBE (C-T) 381 419 457 508
2 - TOP TUBE (EFF) 565 592 619 649
3 - HEAD TUBE 95 105 120 140
4 - CHAINSTAY 445 445 445 445
5 - BB HEIGHT 336 336 336 336
6 - BB DROP 35/32 35/32 35/32 35/32
7 - WHEELBASE 1180 1205 1229 1255
8 - HEAD ANGLE 66º/65,5º 66º/65,5º 66º/65,5º 66º/65,5º
9 - SEAT ANGLE 77º/76,5º 77º/76,5º 77º/76,5º 77º/76,5º
10 - STANDOVER 710 736 766 776
11 - REACH 425 450 474 500
12 - STACK 604 613 627 646
13 - FORK LENGTH 547 547 547 547
14 - RAKE 44 44 44 44
Sizes:
FRAME SIZERIDER HEIGHT (CM)RIDER HEIGHT (IN)
SMALL150 - 165 59.1" - 65.0"
MEDIUM160 - 175 63.0" - 68.9"
LARGE170 - 185 66.9" - 72.8"
X-LARGE180 - 195 70.9" - 78.0"

Specs

Frame Orbea Rise Hydro 140mm travel 29" Boost 12x148
Fork Fox 34 Float Performance 140 3-Position QR15x110
Rear Shock Fox Float Performance 2-Position Evol custom tune 210x55mm
Wheels Race Face AR 30c Tubeless Ready
Tires Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR, Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Crankset Shimano Steps EM600
Chainrings e*thirteen e*spec Direct Mount 32T Boost
Shifters Shimano SLX M7100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100
Brakes Shimano M6100 Hydraulic Disc
Handlebars OC Mountain Control MC31, Rise20, Width 800
Tape/Grips OC Lock On
Stem OC Mountain Control MC20, 0º
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost OC Mountain Control MC21, 31.6mm, Dropper
Saddle Fizik Terra Ridon X5 145mm
Accessories & Extras OC Computer Mount CM-05, Garmin/Sigma
Motor Shimano EP600-RS
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Baobab Brown-Cosmic Brown / Small / 29-inch 8434446537325 R65203V5 RIS39631615T
